Description

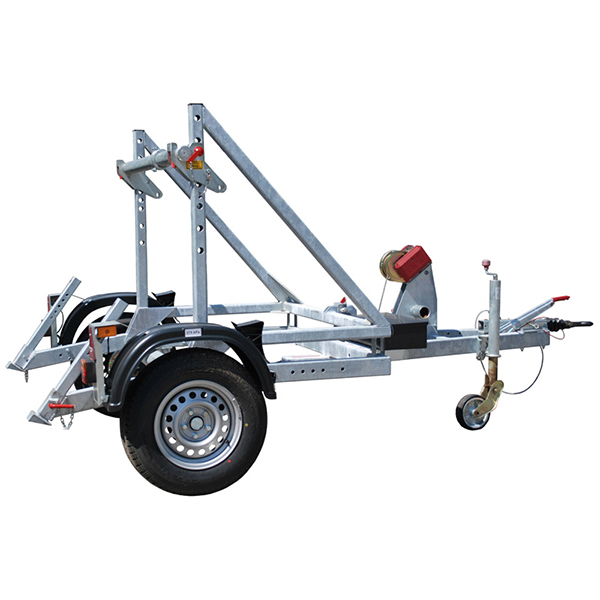

Lifting and lowering by mechanical winch, single axle chassis with overrun brake, straight drawbar with ball coupling,
Complete with standard equipment!
Lifting and lowering by mechanical winch, single axle chassis with overrun brake, straight drawbar with ball coupling,
The cutting tools feature an advancing speed setting automatically switching from a fast advancing speed of cable cutting blades to a slower cutting speed – tools are provided with a maximum pressure valve (MPC1 manometer is available upon request to check the proper setting of the valve).
1. 2-Bundle Overhead Line Stringing Equipment
2. Main pump and motor: German Rexroth
3. Hydraulic Puller Tensioner
4. Max pull: 2x70kN
5. Diesel: Cummins 129kw(173hp)
6. Speed Reducer: German Rexroth
7. Bull-wheel diameter: 1700mm
8. Max rope diameter: 24mm
9. Max reel size: 1700mm
According to the number of bolts, there are 3 types:1 bolt guy clamp, 2 bolt guy clamp, and 3 bolt guy clamp. 3 bolt clamp is most used due to the excellent performance.
In another installation way, the guy clamp is replaced by the wire rope clip or guy grip. Some types of guy clamps have curved ends, protecting the wire from damage.
The ladder is easily foldable for convenient transportation and storage, and its easy click-lock system allows for both versatility and security. Suitable for Trade and DIY use.
• Maximum safe working load of 150kg
• Fitted with stabiliser bars
• Simple ‘click-lock’ hinge system
• Folded height 0.9m
• Stepladder height 1.65m (SWH 2.72m)
• Extension ladder height 3.38m (SWH 4.03m)
SWH is the recommended safe working height.
Guy wire anchor rod feature:
1. Breaking Load test: 62kn for 1 min
2. Hot-dip galvanized strictly according to ASTM-123
3. Uniform and reasonable packing
4. Size Accuracy 0.1mm.
5. Direct From Factory, Save 30%–50% Cost
The guy wire anchor rod with square nut is manufactured in hot-dip galvanized steel. The raw material steel is selected according to AISI-SAE 1018 or 1020. The carbon is not lower than 0.13% according to ASTM A36M. Zinc coating of 80 um, according to ASTM A-153. The head of the guy wire anchor rod will be forged in one single piece with a single eye, twin-eye, or trip eye as attached drawings.The other side rod is with 8cm to 10cm thread length according to UNC. The UNC required 10thread per inch.
The heavy-duty square nut which assembled on the guy wire anchor rod is of galvanized steel with a minimum coating of 53 um, according to class C of ASTM A153. The square nut thread is made before galvanization.
According to the different shapes, there is another type called Y clevis. It’s because the structure is like letter “Y”. On the one hand of the ball clevis is a ball head. On the other hand, there is a steel pin or hex bolt going through the two holes of the ball clevis. So that, there is space for the U clevis to connect the ball clevis.
