Description

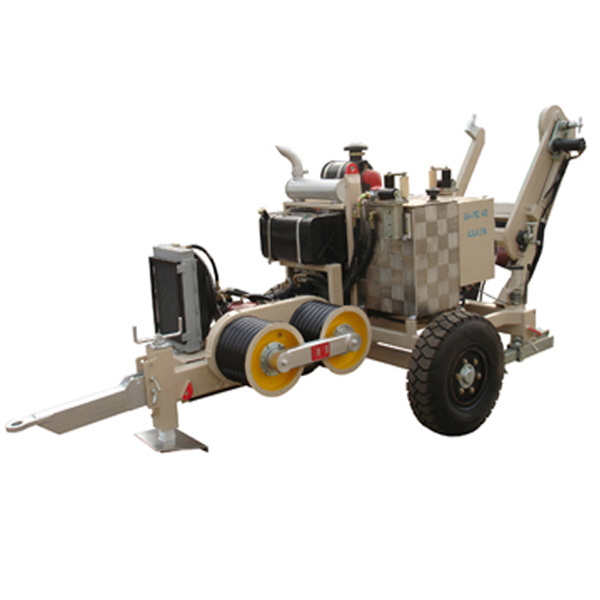

Engine of Overhead Power Line Conductor Tension Stringing Equipment Hydraulic Cable Puller adopted Cummins water cooled diesel engine.
Main variable pump and main motor: Rexroth
Reducer: RR
Main hydraulic valve: Rexroth
Engine of Overhead Power Line Conductor Tension Stringing Equipment Hydraulic Cable Puller adopted Cummins water cooled diesel engine.
Main variable pump and main motor: Rexroth
Reducer: RR
Main hydraulic valve: Rexroth
Test Results Storage, Transfer and Post Processing with Test Results Management software
The Fibershot AWI File Management system allows technicians to organize test results into multiple files and transfer stored results via USB to a PC for analyzing, generating reports, and printing.The supplied powerful PC Analysis & Reporting Tool (Test Results Management software) allows users to apply industry standards-based rules to test results and create comprehensive certification reports. Users can generate network Pass/Fail results demonstrating compliance with industry standards and illustrate headroom. The Software is a Windows® compatible software. buy optical power meter at a reasonable cost.
Low dispersion and attenuation
Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental properties
Double-jacket structure make cable have nice properties of moisture resistance and crush resistance
With small cable diameter, light cable weight, easily to lay
Operating Temperature : -40 ~ +60 ℃
Waterproofing layer providing strong water-resistance performance
Steel tape with PE outer sheathing and metallic strengthening member enhancing anti-crush and tensile property of cable
Up to 24 fiber cores
The loose tube is centrally situated with good excess length and minimizes the influence of lateral crush.
Double wire as strength member provides excellent strain performance.
According to the different shapes, there is another type called Y clevis. It’s because the structure is like letter “Y”. On the one hand of the ball clevis is a ball head. On the other hand, there is a steel pin or hex bolt going through the two holes of the ball clevis. So that, there is space for the U clevis to connect the ball clevis.
Guy thimble is also called cable thimble which is used on pole band to work as an interface fitting to connect the guy grip or guy wire. The guy thimble is widely used on the electric power line or dead-end pole line. The cable thimble usually connects with the preformed tension clamp to support and protect the ADSS/OPGW cable.
1. 2-Bundle Overhead Line Stringing Equipment
2. Main pump and motor: German Rexroth
3. Hydraulic Puller Tensioner
4. Max pull: 2x70kN
5. Diesel: Cummins 129kw(173hp)
6. Speed Reducer: German Rexroth
7. Bull-wheel diameter: 1700mm
8. Max rope diameter: 24mm
9. Max reel size: 1700mm
The cutting tools feature an advancing speed setting automatically switching from a fast advancing speed of cable cutting blades to a slower cutting speed – tools are provided with a maximum pressure valve (MPC1 manometer is available upon request to check the proper setting of the valve).
According to the number of bolts, there are 3 types:1 bolt guy clamp, 2 bolt guy clamp, and 3 bolt guy clamp. 3 bolt clamp is most used due to the excellent performance.
In another installation way, the guy clamp is replaced by the wire rope clip or guy grip. Some types of guy clamps have curved ends, protecting the wire from damage.
The pole top pin is made from hot new rolled steel. The steel will heat to red and punched to the designed shape. The finish of the pole top pin is hot dip galvanized which is reasonably smooth and free of burrs or other sharp projections.
Materials of the PLC splitter FTTB optical fiber distribution box
PLC splitter FTTB optical fiber distribution box features galvanized steel sheet with a thickness no less than 1.0mm and the surface of the steel sheet uses an electrostatic spraying plastic. The distribution box is suitable for indoor and outdoor use. The spray provides corrosion protection. The color is gray and white and can also be customized.
