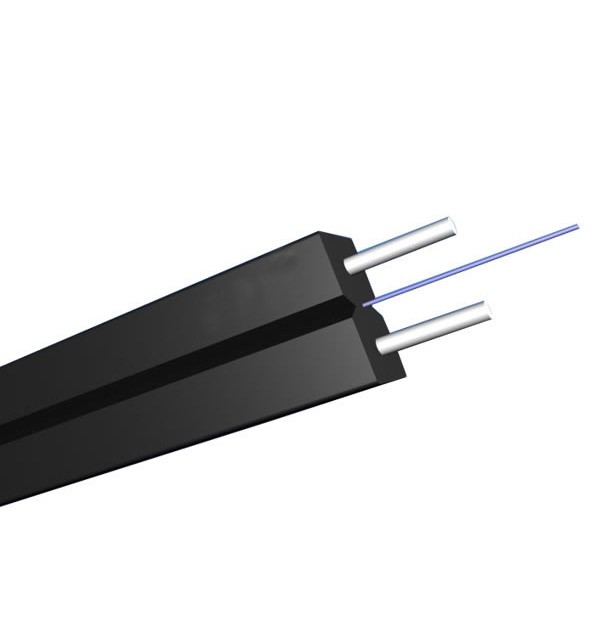

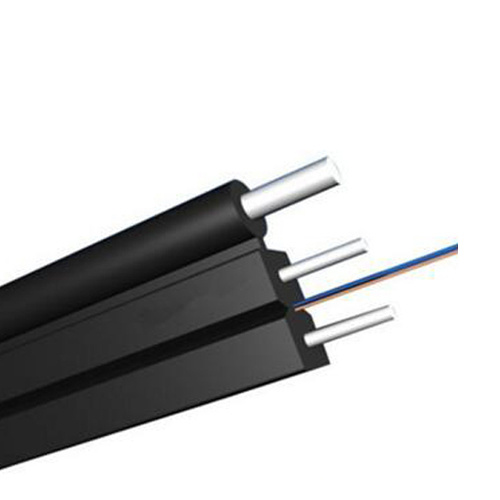

The optical fiber unit is positioned in the centre.Two parallel Fiber Reinforced Plastics(FRP) are placed at the two sides.A steel wire as the additional strenght member is also applied. Then the cable is completed with a black or color LsZH sheath
The pole top pin is made from hot new rolled steel. The steel will heat to red and punched to the designed shape. The finish of the pole top pin is hot dip galvanized which is reasonably smooth and free of burrs or other sharp projections.
Low dispersion and attenuation
Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental properties
Double-jacket structure make cable have nice properties of moisture resistance and crush resistance
With small cable diameter, light cable weight, easily to lay
Operating Temperature : -40 ~ +60 ℃
Waterproofing layer providing strong water-resistance performance
Steel tape with PE outer sheathing and metallic strengthening member enhancing anti-crush and tensile property of cable
Up to 24 fiber cores
The loose tube is centrally situated with good excess length and minimizes the influence of lateral crush.
Double wire as strength member provides excellent strain performance.
Guy thimble is also called cable thimble which is used on pole band to work as an interface fitting to connect the guy grip or guy wire. The guy thimble is widely used on the electric power line or dead-end pole line. The cable thimble usually connects with the preformed tension clamp to support and protect the ADSS/OPGW cable.
Materials of the PLC splitter FTTB optical fiber distribution box
PLC splitter FTTB optical fiber distribution box features galvanized steel sheet with a thickness no less than 1.0mm and the surface of the steel sheet uses an electrostatic spraying plastic. The distribution box is suitable for indoor and outdoor use. The spray provides corrosion protection. The color is gray and white and can also be customized.
Test Results Storage, Transfer and Post Processing with Test Results Management software
The Fibershot AWI File Management system allows technicians to organize test results into multiple files and transfer stored results via USB to a PC for analyzing, generating reports, and printing.The supplied powerful PC Analysis & Reporting Tool (Test Results Management software) allows users to apply industry standards-based rules to test results and create comprehensive certification reports. Users can generate network Pass/Fail results demonstrating compliance with industry standards and illustrate headroom. The Software is a Windows® compatible software. buy optical power meter at a reasonable cost.
Pole top bracket is made to permit mounting on wood poles by two 16mm diameter bolts vertically spaced 203mm center to center. One of the bracket mounting holes is slotted to permit slight variations in mounting bolt spacing. The insulator mounting surface is at a height approximately 125mm above the top bracket mounting hole.
The cutting tools feature an advancing speed setting automatically switching from a fast advancing speed of cable cutting blades to a slower cutting speed – tools are provided with a maximum pressure valve (MPC1 manometer is available upon request to check the proper setting of the valve).
Cutting Cables Carefully
Always read the instruction manual before using the tool
Keep hands clear of cutting blades at all times
Do not cut steel – for steel cutting applications contact us
Always wear safety glasses and gloves when operating this tool
Before starting cutting cables ensure that the latch is fully secured – partial closure may damage the cutting tool head
Clean the tool daily after use with a clean cloth to remove any residue including dust, sand or dirt
Do not attempt to turn the tool head if the hydraulic circuit is pressurised
