Description

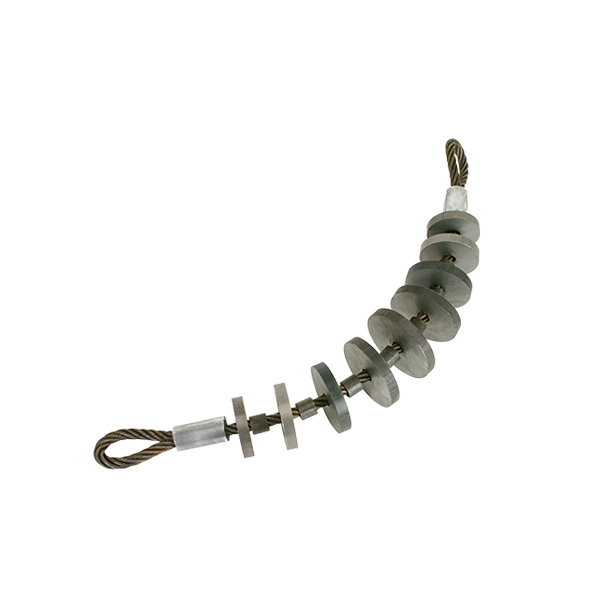

Steel discs in graduated sizes make this mandrel ideal for removing obstructions in duct with extreme bends. 7,000 lbs. (31,136 N) load capacity.
Steel discs in graduated sizes make this mandrel ideal for removing obstructions in duct with extreme bends. 7,000 lbs. (31,136 N) load capacity.
1. 2-Bundle Overhead Line Stringing Equipment
2. Main pump and motor: German Rexroth
3. Hydraulic Puller Tensioner
4. Max pull: 2x70kN
5. Diesel: Cummins 129kw(173hp)
6. Speed Reducer: German Rexroth
7. Bull-wheel diameter: 1700mm
8. Max rope diameter: 24mm
9. Max reel size: 1700mm
Low dispersion and attenuation
Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental properties
Double-jacket structure make cable have nice properties of moisture resistance and crush resistance
With small cable diameter, light cable weight, easily to lay
Operating Temperature : -40 ~ +60 ℃
Waterproofing layer providing strong water-resistance performance
Steel tape with PE outer sheathing and metallic strengthening member enhancing anti-crush and tensile property of cable
Up to 24 fiber cores
The loose tube is centrally situated with good excess length and minimizes the influence of lateral crush.
Double wire as strength member provides excellent strain performance.
The pole top pin is made from hot new rolled steel. The steel will heat to red and punched to the designed shape. The finish of the pole top pin is hot dip galvanized which is reasonably smooth and free of burrs or other sharp projections.
