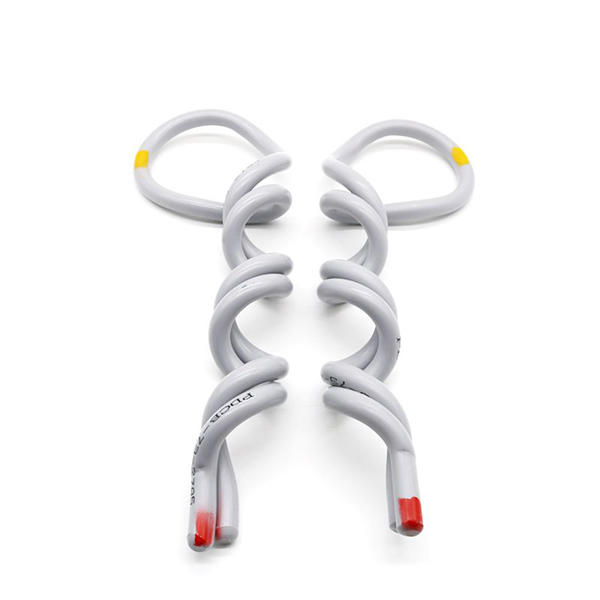

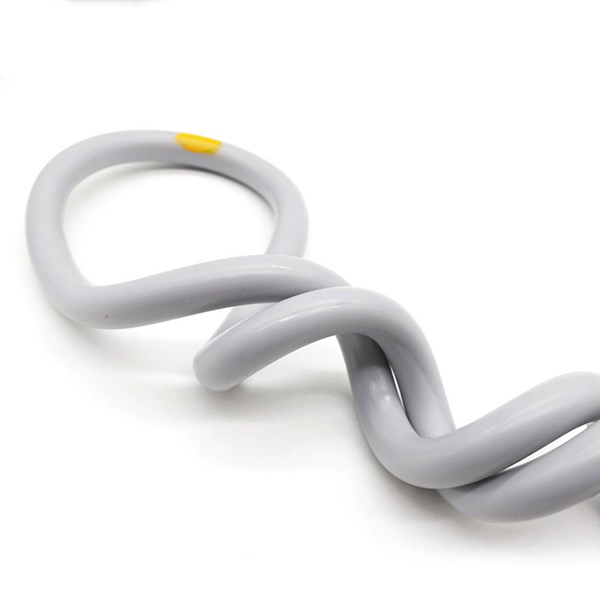

PVC Plastic Double Angle Side Ties

Double line ties /top ties are intended for securing bare conductors into the top groove of insulators. On vertically-mounted insulators at double cross arms or brackets, the double line ties /top ties can normally accommodate line angels of up to 20̊ with no more than a 10̊ angle at each insulator.

Semi-conductive plastic line ties/ top ties are intended for use with covered conductors and vertically-mounted tie top insulators on crossarms or pole-top-mounted insulators. Line angles of up to 15° can be accomodated when used with any plastic covered conductor.

Metal Single line/top ties are intended for securing bare conductors into the top groove of insulators. On vertically-mounted insulators, single line ties/ top ties can normally accommodate line angels of up to 10̊ depending on insulator orientation.

PVC plastic double line /top ties are intended for use with covered conductors and vertically-mounted tie top insulators on cross arms or pole-top-mounted insulators. When utilized within double cross arm construction as illustrated. Line angles of up to 0°to 30°can be comfortably accommodated.

PVC plastic single side ties are intended for use with covered conductors and side-mounted tie top insulators on arm less construction. Line angles of up to 15°can be accommodated when used with any plastic covered conductors.

Metal Single side ties are intended for securing bare conductors into the side groove of insulators. On horizontally-mounted insulators, single side ties can normally accommodate line angels of up to 10̊. On vertically-mounted insulators, line angles up to 40̊ can normally be achieved.

Metal Double side ties are intended for securing bare conductors into the side groove of insulators. On vertically-mounted insulators at double cross arms or brackets, the double side ties can normally accommodate line angles of between 0̊ and 80̊, with no more than a 40̊ angle at each insulator.
