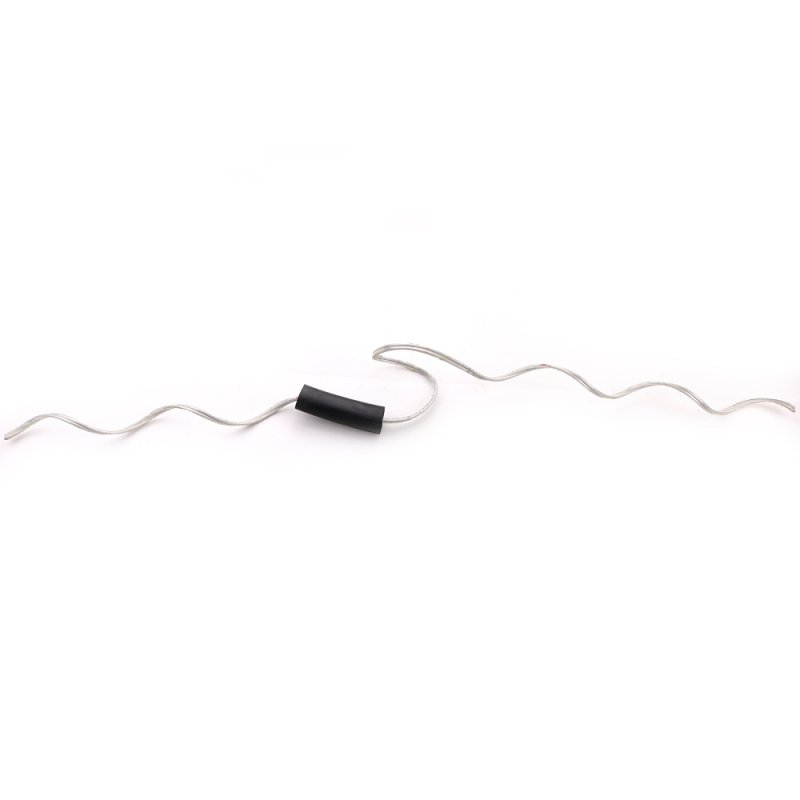

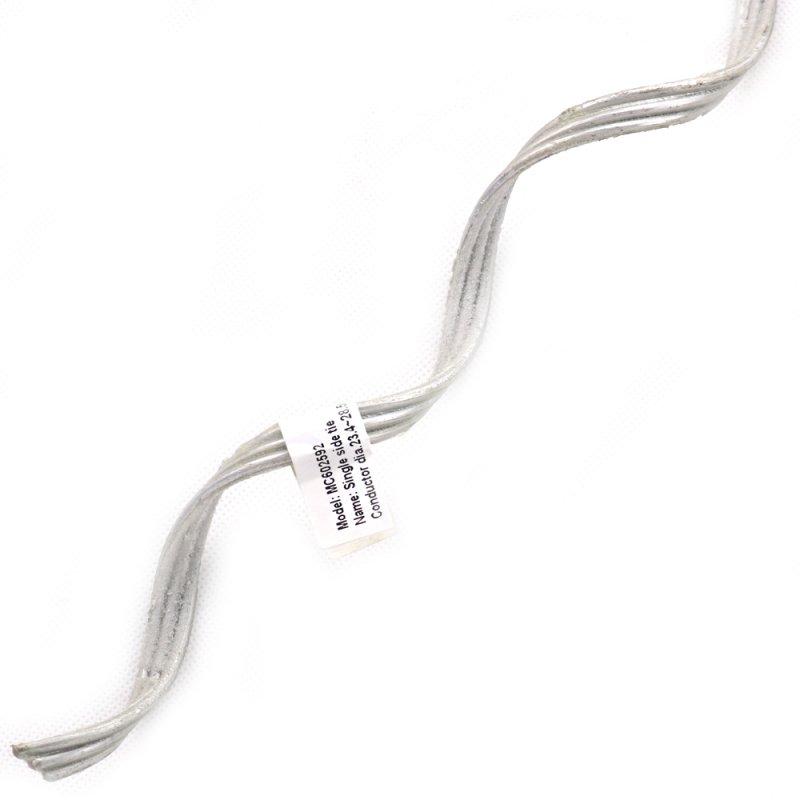

Metal Single Line Top Tie

Metal Single line/top ties are intended for securing bare conductors into the top groove of insulators. On vertically-mounted insulators, single line ties/ top ties can normally accommodate line angels of up to 10̊ depending on insulator orientation.

Compare
Category:

Share this product

Description

Single line/top ties are intended for securing bare conductors into the top groove of insulators. On vertically-mounted insulators, single line ties/ top ties can normally accommodate line angels of up to 10̊ depending on insulator orientation.

Material: Aluminum-clad steel with an elastomer pad

Mechanical: Single line ties/top ties will develop unbalanced and lift-off loads equivalent to , or in excess of, a hand tie over covered conductor. When installed with a pad on bare conductor, single line ties/top ties provide superior protection against abrasion and all types of conductor motion. The pad is a resilient cushion at the point of contact between conductor and insulator.

Insulators: Φ57mm (C Neck), Φ73mm (F neck) and Φ89mm (J neck)

Applicable conductor: ACSR, All-Aluminum, Aluminum Alloy and etc .
